Production line technology:
The production capacity is 1,000 tons per hour.
2) Shijiazhuang Haihui Machinery Co., Ltd. offers free design of production line processes.
3) The crushing process adopts the mode of "feeder + jaw crusher + single-cylinder cone crusher + vibrating screen"
Process flow:

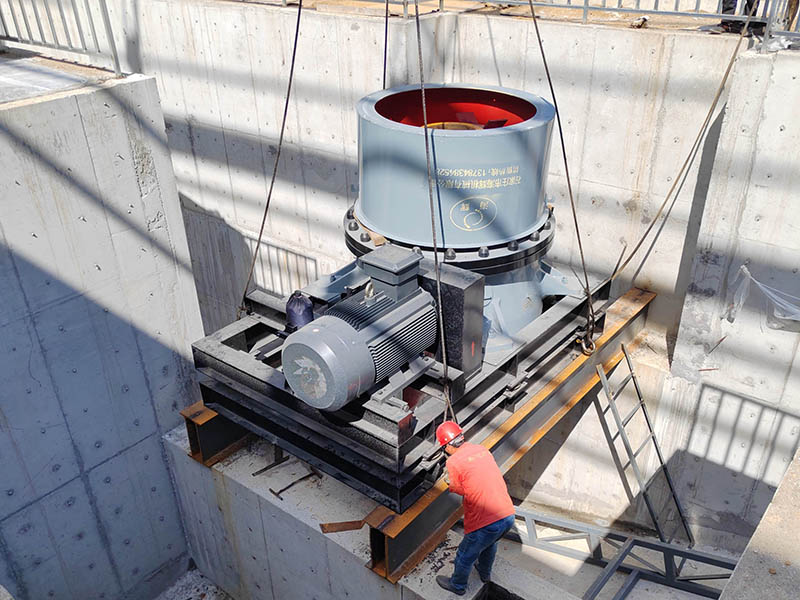

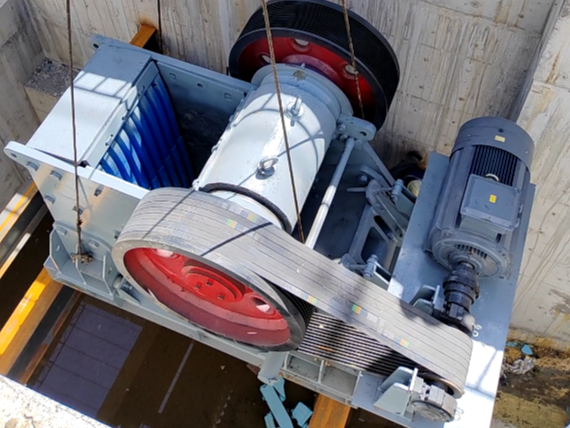

The entire production line is fed into the hopper by self-unloading mine cars and then conveyed to the C series jaw crusher for coarse crushing by the ZSW series vibrating feeder. The materials produced by the jaw crusher are conveyed by the belt conveyor to the HPZ single-cylinder hydraulic cone crusher for secondary crushing. The crushed materials pass through a vibrating screen for one screening, and the finished products that meet the specified particle size are screened out.
The production process can change the selection of equipment combinations according to the customer's output and the particle size requirements of the output. The solution can vary with the demand and is not fixed.
The crushed stone production line features a high degree of automation, a simple process, high production efficiency, low operating costs, large output, high profits, and the finished crushed stones have uniform particle size and good particle shape.
Production line configuration list:
Feeder + jaw crusher + vibrating screen + single-cylinder hydraulic cone crusher (fine crushing) + vibrating screen
Call the sales hotline of Shijiazhuang Haihui Machinery. Our company will arrange for a salesperson to communicate with you and promptly provide a suitable production plan. After mutual confirmation, a contract will be signed. Once the customer prepays the equipment purchase advance payment, our factory will arrange for production. For more details on the purchase process, steps and equipment warranty regulations, please call the service hotline on the website.
