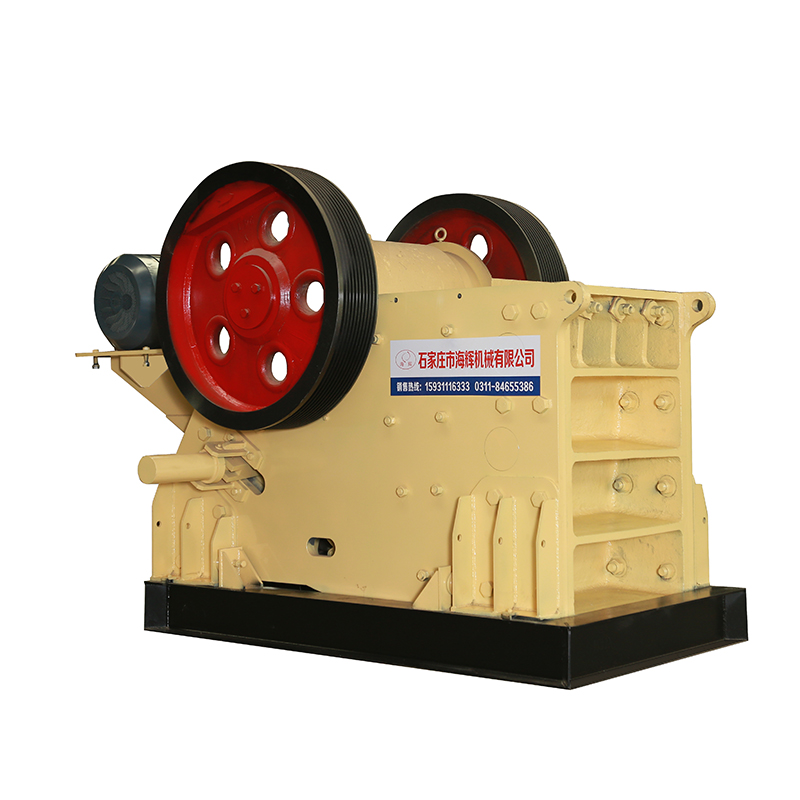

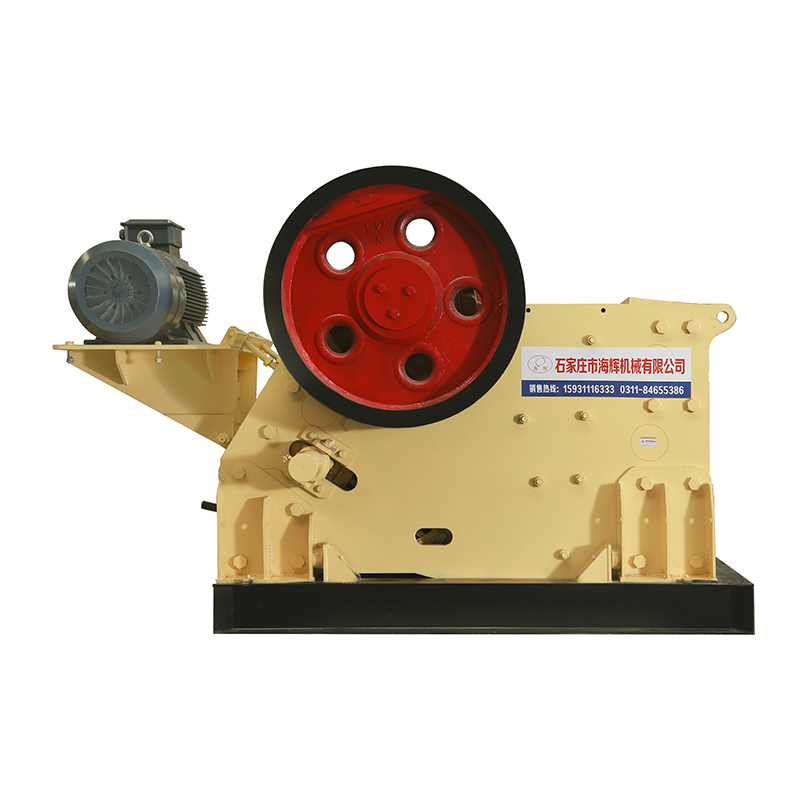

C-series Jaw Crusher

The C-series European version jaw crusher is the latest product developed by our company through the introduction of foreign technology, which is at a leading level in China. This product has a large processing capacity and high crushing efficiency. Compared with traditional jaw crushers, it has the characteristics of low noise, low vibration, smooth operation, and high material strength of the entire machine components. If necessary, the entire machine can be disassembled into individual pieces for easy lifting and installation, and can be suitable for narrow environments. The C-series jaw crusher has efficient kinematic performance and strong power, ensuring that it can operate efficiently in the harshest mining environments, making it an upgraded alternative to traditional jaw crushers.

Product features:

1. Modular non welded structure: Improper welding can alter the material properties of the crusher, affecting its overall lifespan, causing unnecessary maintenance, and delaying production. The new crusher adopts separate casting of front and rear gears, and is connected to the side plate and integral bearing seat with pin bolts, making the transportation of the crusher more convenient.

2. Easy and convenient installation: The optimized design of the crusher has better balance, and the installation uses shock-absorbing pads and limit blocks, which shortens the installation time without the need for pre made precisely sized anchor bolt holes or anchor bolts.

3. Integrated motor installation: The crusher is equipped with a motor frame at the factory, which is integrated with the crusher, reducing the installation space and V-belt length of the crusher. The synchronous movement of the motor and crusher increases the lifespan of the V-belt.

4. Finite element analysis: The crusher adopts industry professional mechanical motion design software for auxiliary design. From component modeling to mechanism analysis, from dynamic analysis to finite element analysis, the entire design process has been effectively controlled.

5. Optimization of crushing chamber type: The optimized design of the crushing chamber type with a reasonable stroke allows for higher output of the crusher. Whether it's pebbles, rocks, or ores, they all have matching tooth plates.

6. Adjustment is more convenient and easy to achieve automation: the new crusher adopts block adjustment. Mechanical adjustment allows the crusher to be adjusted both during operation and shutdown. After replacing with hydraulic adjustment, the crusher can achieve automatic control without the need to add or remove bulky pads or manually tighten the spring rod nuts. Simply press the button to adjust and pre tighten the jaw.

7. Optional accessories: The C series crusher offers a variety of optional accessories, including feeding hopper, flywheel with wheel safety cover, automatic lubrication system, and hydraulic adjustment series. These optional accessories can greatly improve the operational efficiency of the equipment and reduce production costs.

8. Mechanism optimization: By using mechanism analysis to optimize the stroke of the moving jaw, a larger stroke is obtained than that of ordinary crushers, resulting in higher production efficiency and productivity.

9. Processing and production: The C series crusher parts are made of high-quality alloy cast steel parts and hot-rolled alloy steel plates to ensure their service life and stability.

10. Expanded bearings: The new crusher uses four enlarged bearings, which are larger and have a longer lifespan than other crusher models of the same specifications. Increased the service life of the movable jaw assembly and extended the cycle of bearing replacement.

11. Discharge port hydraulic adjustment series (optional): Each model of crusher can be equipped with a hydraulic adjustment system, which can automatically adjust the discharge port and pre tighten the jaw through hydraulic pressure. A safe and reliable hydraulic system reduces the preparation work before starting up, improves work efficiency, and ensures the safe operation of the host.

Technical parameters:
