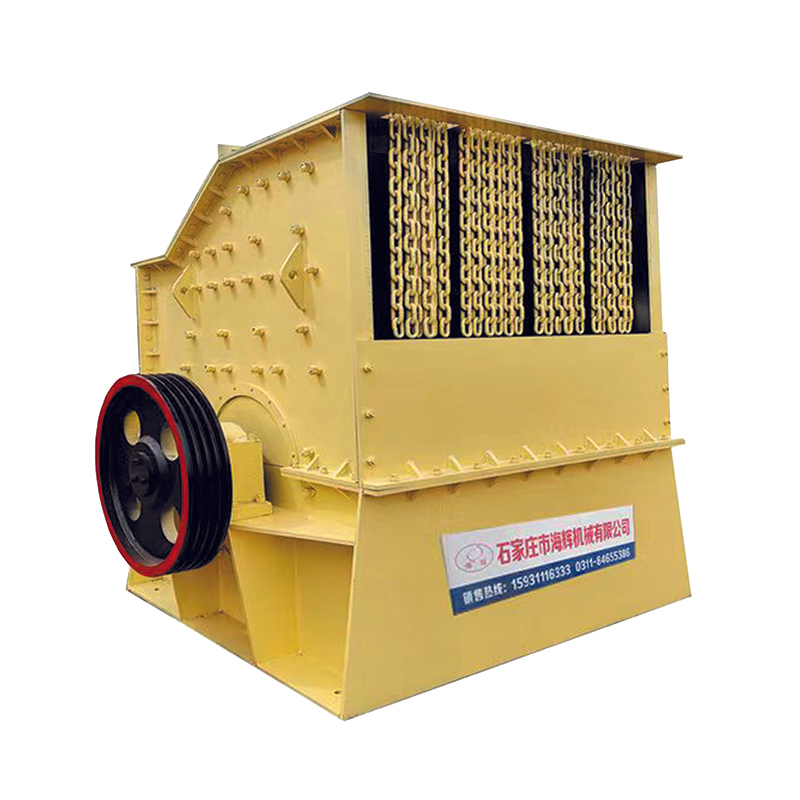

XH Series Box Crusher

Box crushers, also known as heavy hammer crushers or square box crushers, are machines that absorb advanced technologies from both domestic and international sources. They combine the principles of ordinary heavy hammer crushers, impact crushers, vertical axis heavy hammer crushers, and various hammer heads (plate hammers) to impact and crush stone materials. Through continuous practice, improvement, and optimization design by our company, we have manufactured and produced the latest generation of crushing machinery products. This has changed the method of controlling the particle size of the discharged material by strips, reduced the wear of the hammer heads in the crushing chamber, and increased the service life of the hammer heads by 4-6 times. Each pair of hammer heads can crush 30000 to 40000 tons of stone materials. The heavy hammer box crusher is an important crushing equipment in new stone production lines, replacing the previous secondary crushing equipment. Efficient, energy-saving, economical and time-saving.

The heavy hammer box crusher is a crushing equipment that absorbs advanced technologies at home and abroad, integrates the advantages of jaw crushers, hammer crushers, impact crushers, snail crushers, etc. It directly crushes large stones, automatically feeds them, and operates in a fully automatic flow process. It saves manpower and energy, is efficient and energy-saving, and produces more than 1000 tons of stone per day. It is currently the most advanced and suitable stone equipment in China, and is highly praised by users.

Application areas:

Application scope of heavy hammer box crusher: Suitable materials in industries such as mining, cement, chemical, road construction, refractory materials, construction sites, sand and gravel factories, including kaolin, dolomite, limestone, feldspar, limestone, slag, slag stone, marble, river pebbles, and hundreds of other materials.

It is the ideal equipment for investing in stone production lines, producing stones, sand, and crushed stone, with an average of 1 kWh of electricity producing 1 cubic meter of stone.

Product features:

1. Large feed inlet, high crushing chamber, suitable for high material hardness and block size, with less stone powder in the product,

2. The material is suspended and the crushing power consumption is low.

3. Novel hammer head with high impact force.

4. The installation of the hammer shaft is adjustable, and the hammer head has a long service life.

5. Adjustable grid size, controllable product particle size, good particle shape

6. The chassis can be flipped over for easier maintenance.

7. Compact structure and strong rigidity of the machine.

8. Assembled structure, easy to transport and install.

9. Full range of functions including impact, counterattack, and collision (stone to stone) crushing, high production efficiency, minimal mechanical wear, and significant comprehensive benefits.

Technical parameters:
