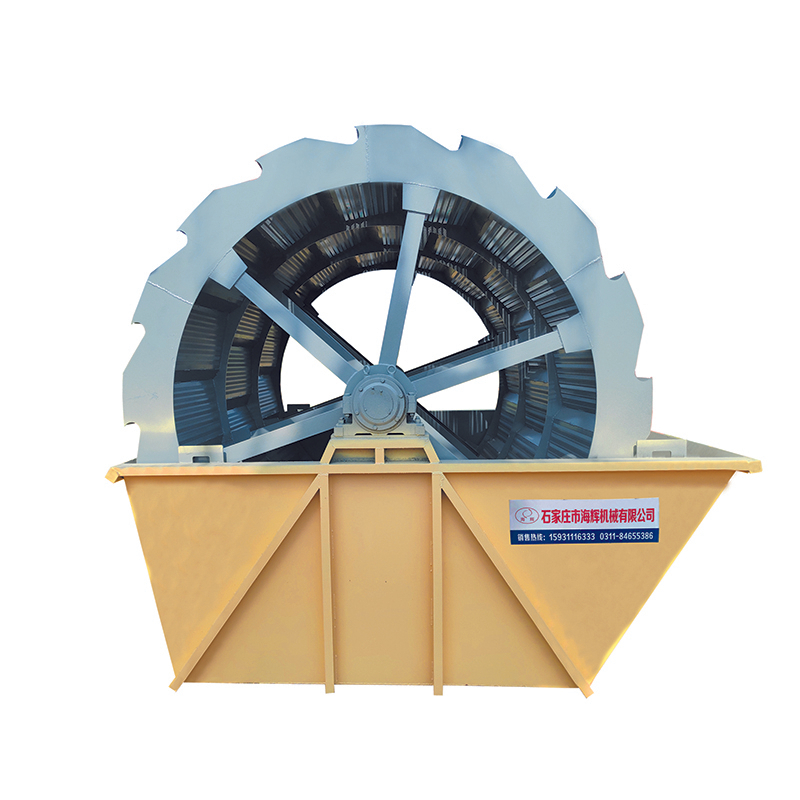

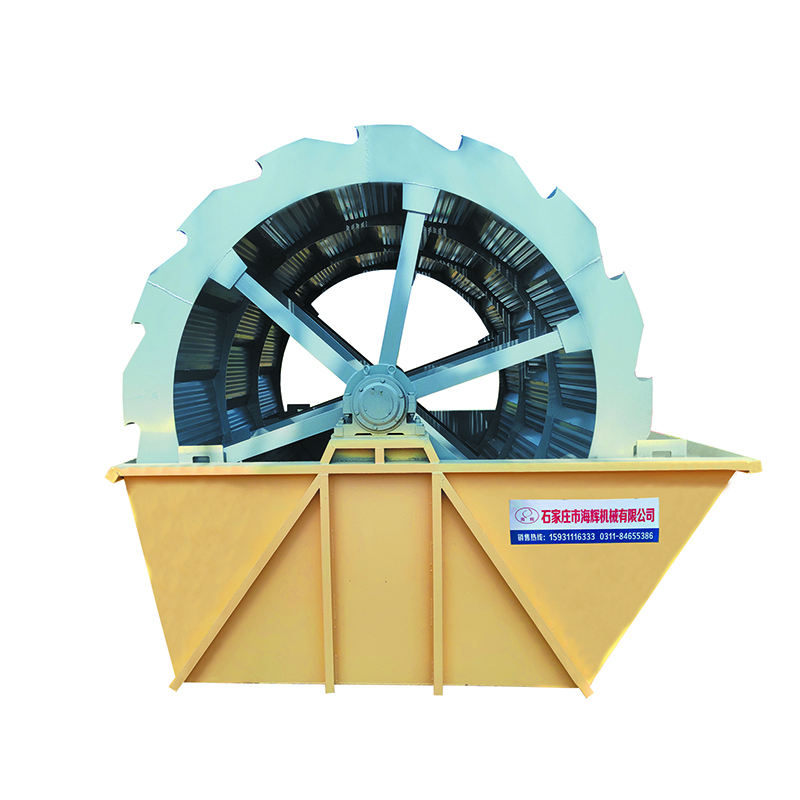

The sand washing machine is an efficient wheel bucket sand washing equipment developed using advanced domestic and foreign technology, combined with the actual situation of the sand and gravel industry, and used in conjunction with the sand making machine. It has three functions: cleaning, dewatering, and grading. Widely applicable to the washing, grading, and impurity removal of fine-grained and coarse-grained materials in industries such as metallurgy, building materials, and hydropower, especially suitable for construction sand and road construction sand and gravel.
Working principle:
When the sand washing machine is in operation, the motor drives the impeller to slowly rotate through a V-belt, reducer, and coupling. The sand and gravel enter the washing tank from the feeding tank, roll under the drive of the impeller, and grind each other to remove impurities covering the surface of the sand and gravel. At the same time, the water vapor layer covering the sand particles is destroyed to facilitate dehydration. At the same time, water is added to form a strong water flow, which promptly carries away impurities and small foreign objects, and discharges them from the overflow outlet washing tank to complete the cleaning process. Clean sand and gravel are carried away by the blades, and finally the sand and gravel are poured into the discharge chute from the rotating impeller, completing the cleaning function of the sand and gravel.
Technical parameters:
Model | Impeller specifications (Outer diameter × width) (mm) | Impeller speed (r/min) | Feed particle size (mm) | Processing capacity (t/h) | Motor Power (kw) | Gearbox model | External dimensions (Length x Width x Height) (mm) |
1628 | φ2800x1600 | 1.178 | ≤10 | 30-100 | 5.5 | ZQ400-50-1-Z | 3255×2500x2900 |
2030 | φ3000×2000 | 1.177 | ≤10 | 50-150 | 7.5-11 | ZQ500-50-1-Z | 3500x3000x3100 |
2430 | φ3000×2400 | 1.179 | ≤10 | 80-200 | 11-15 | ZQ650-50-1-Z | 3500x3500x3100 |
3030 | φ3000×3000 | 1.179 | ≤10 | 150-260 | 11-18.5 | ZQ750-50-1-Z | 3500x4500x3100 |
