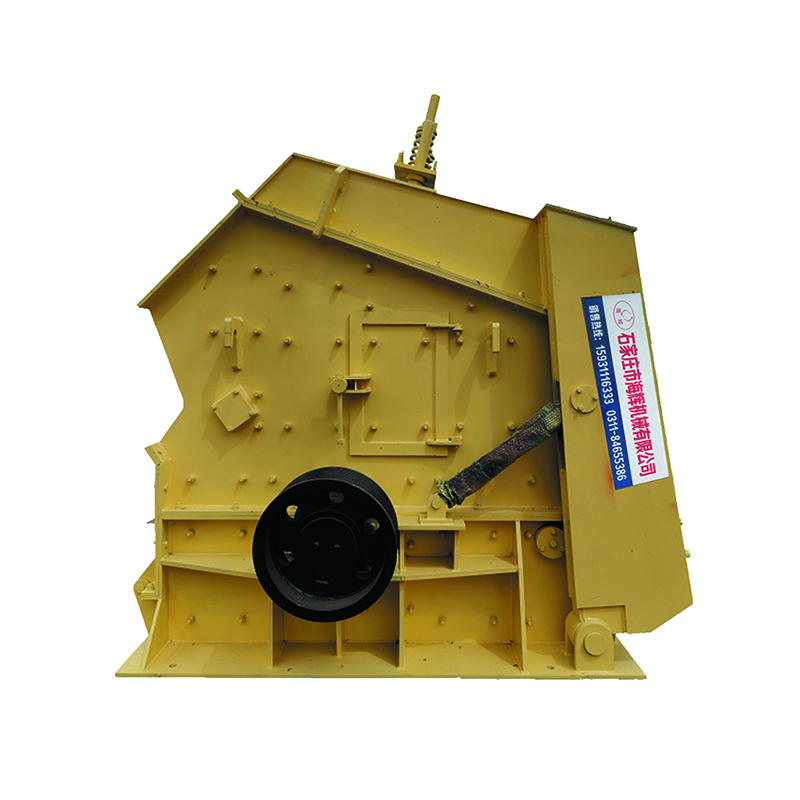

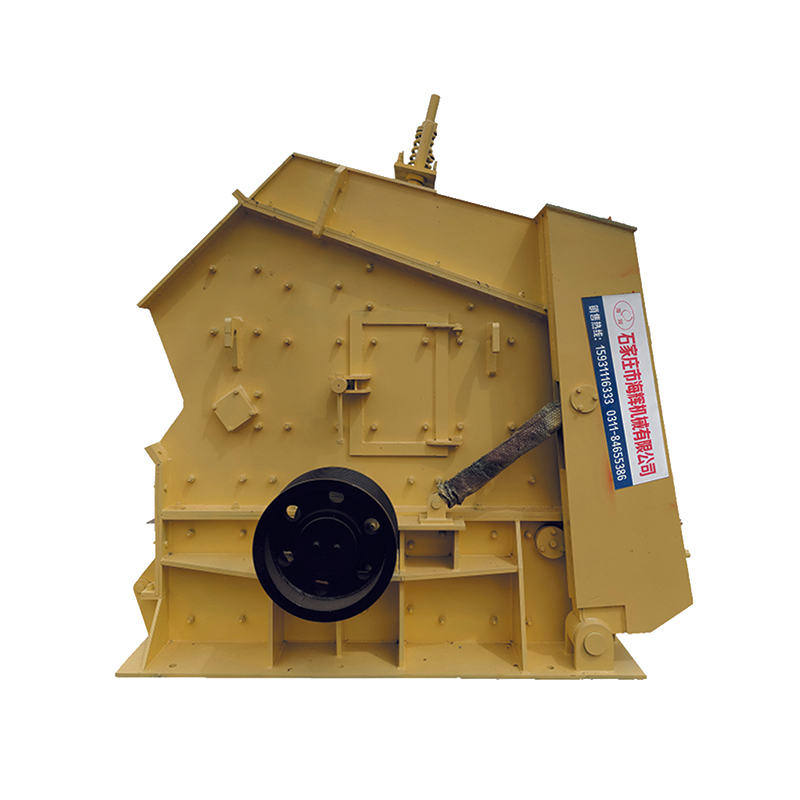

PE Series Impact Crusher

PE impact crusher (impact crusher) can process various coarse, medium, and fine materials (granite, limestone, concrete, etc.) with a side length not exceeding 500MM and a compressive strength not exceeding 350MPA. It is widely used in the production of artificial sand and gravel materials in various ore crushing, railway, highway, and construction industries. The counterattack crusher (counterattack crusher) is the latest generation of counterattack crusher developed by our company by absorbing advanced technologies at home and abroad, combined with the specific industrial and mining conditions of the domestic sand and gravel industry.

Working principle:

PE impact crusher is a crushing machinery that uses impact force to crush materials. When working, the motor rotates at high speed to drive the rotor to move at high speed. When the material enters the machine from the feeding port, it is crushed by the high-speed impact of the plate hammer on the rotor, and then thrown onto the counterattack lining plate for further crushing. Afterwards, it bounces back from the counterattack lining plate to the hammer action zone for cyclic crushing. During this process, materials also collide with each other, achieving the effect of fragmentation. This process is repeated until the material is crushed to the desired particle size and discharged through the discharge port.

Product features:

1. The feed inlet and crushing chamber are high, suitable for materials with high hardness, large block size, and less stone powder in the product;

2. Compact structure, strong rigidity of the machine, and large rotational inertia of the rotor;

3. High chromium plate hammer, resistant to impact, wear, and strong impact force;

4. Keyless connection, easy to maintain Economically reliable;

5. The gap between the counterattack plate and the plate hammer can be easily adjusted, effectively controlling the particle size of the discharge and ensuring good particle shape; 6. Full crushing function, high productivity, minimal wear of mechanical parts, and high comprehensive benefits.

Technical parameters:
